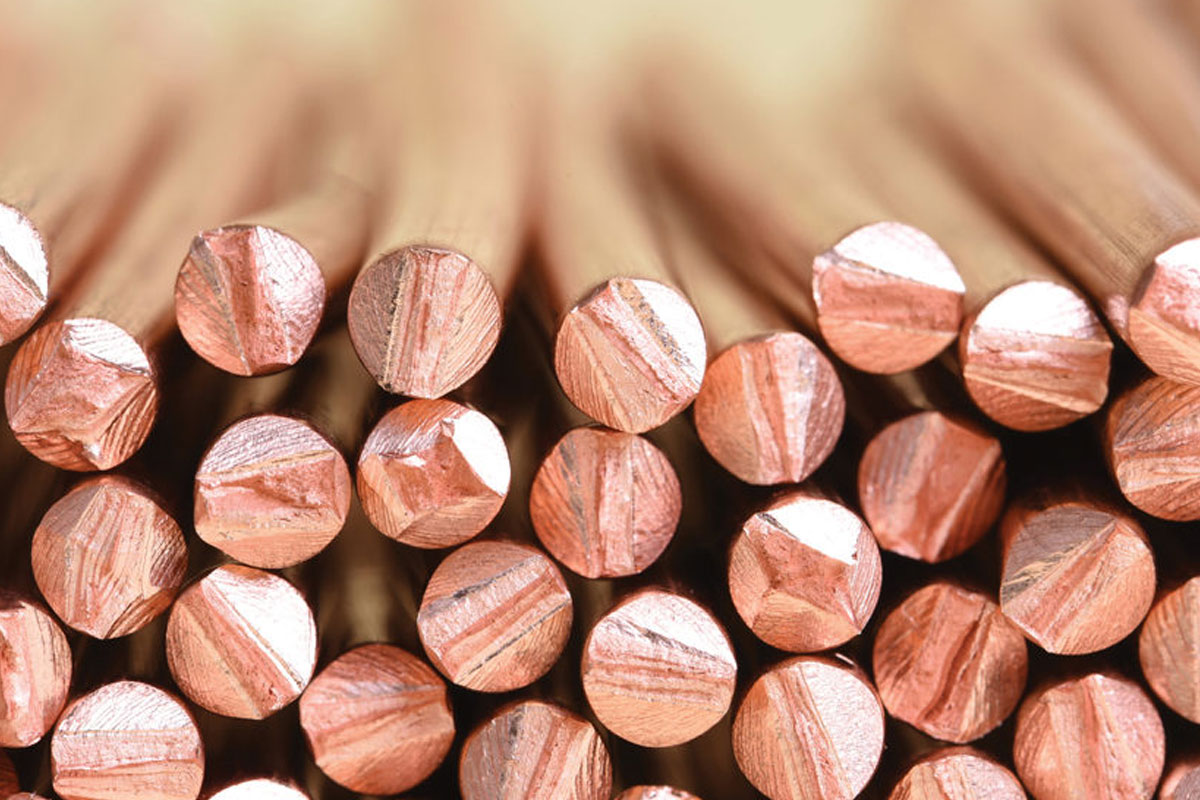

Copper is a widely used metal known for its excellent electrical conductivity, thermal conductivity, and corrosion resistance. Copper products come in various grades, indicate the specific composition and properties of the alloy. Here are some common copper products and their corresponding grades Overall, the choice of the specific grade of copper product depends on the application requirements such as conductivity, strength, corrosion resistance, and other mechanical properties.
Specification :
| ISO | British | CEN | ASTM | Description |
|---|---|---|---|---|
| Designation | Standard | Number | Equivalent | |
| Cu-ETP1 | C100 | CW003A | Electrolytically refined higher purity copper | |
| Cu-ETP | C101 | CW003A | C11000 | Electrolytic, tough pitch high conductivity |
| CuAg(0.04) | C101 | CW011A | Silver bearing copper | |
| CuAg(0.07) | CW012A | Silver bearing copper | ||
| CuAg(0.10) | CW013A | Silver bearing copper | ||
| Cu-FRHC | C102 | CW005A | C11020 | Fire refined, tough pitch, high-conductivity |
| Cu-HCP | CW021A | High conductivity phosphorus deoxidised | ||
| Cu-DLP | CW023A | C12000 | Low phosphorus deoxidised copper | |
| Cu-FRTP | C104 | CW006A | C12500 | Tough pitch, non-arsenical copper |
| CuAs | C105 | Tough pitch arsenical copper | ||
| Cu-DHP | C106 | CW024A | C12200 | Phosphorus deoxidised non-arsenical |
| CuAsP | C107 | C14200 | Phosphorus deoxidised arsenical copper | |
| CuAg(0.04P) | CW014A | Silver bearing deoxidised copper | ||
| CuAg(0.07P) | CW015A | Silver bearing deoxidised copper | ||
| CuAg(0.10P) | CW016A | Silver bearing deoxidised copper | ||
| Cu-OF | C103 | CW008A | C10200 | Oxygen free, high conductivity copper |
| Cu-OFE | C110 | CW009A | C10100 | Oxygen free, high conductivity copper, |
| CuCd1 | C108 | C16200 | Copper-cadmium | |
| CuCr1 | CC101 | CW105C | C18200 | Copper-chromium |
| CuCr1Zr | CC102 | CW106C | Copper-chromium-zirconium | |
| CuNi1Si | CW109C | C191010 | Copper-nickel-silicon | |
| CuNi2Si | CC102 | CW111C | C70250 | Copper-nickel-silicon |
| CuNi3Si | CW112C | C70320 | Copper-nickel-silicon | |
| CuNi4AlSi | Copper-nickel aluminum silicon | |||
| CuNiP | C113 | CW108C | Copper-nickel-phosphorus | |
| CuBe2 | CB101 | CW101C | C17200 | Copper-beryllium |
| CuBe2Pb | CW102C | C17300 | Leaded copper-beryllium | |
| CuNi2Be | CW110C | C17510 | Copper-nickel-beryllium | |
| CuCo2Be | C112 | CW104C | C17500 | Copper-cobalt-beryllium |
| CuCo1Ni1Be | CW103C | Copper-cobalt-beryllium | ||
| CuZr | CW120C | C15000 | Copper-zirconium | |
| CuSi2Mn | CW115C | C65100 | Copper-silicon | |
| CuSi3Mn1 | CS101 | CW116C | C65500 | Copper-silicon |
| CuTeP | C109 | CW118C | C14500 | Copper-tellurium |
| CuSP | C111 | CW114C | C14700 | Copper-sulfur |
| CuPb1P | CW113C | C18700 | Copper-lead | |
| CuZn0.5 | CW119C | Copper-zinc | ||
| Cu-G | HCC1 | CS040A | High conductivity copper | |
| G-CuSn | Copper with small additions | |||
| CuCr1-G | CC1-TF | CS140C | Copper-chromium | |
| CP140C | ||||
| G-CuNiP | Copper-nickel-phosphorus | |||
| G-CuNi2Si | Copper-nickel -silicon | |||
| G-CuCo2Be | Copper-cobalt-beryllium | |||
| G-CuBe | Copper-beryllium |
