Parasmani Engineers India pipe fittings are available in a variety of sizes, materials and configurations. Our range includes pipe connectors and pipe and port adapters that are also available in a wide array of thread types. They are designed to provide leak-free connections and are suitable for use across a variety of applications that support many of today's major industrial markets.
Pipe Fittings are a Piping component that helps in changing the direction of the flow, such as elbows and tees. Changes the size of the pipe, such as reducers, and reducing tees. Connect different components such as couplings and stop the flows such as Caps.
Pipe Fittings Specification
Welded Butt Weld Fittings : 1/2" - 48"
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Manufacturing Standards of Stainless Steel Buttweld Fittings
ASTM A182 & A240 - TP304, 304L, 304H, 316, 316L, 316H, 316Ti, 309, 310, 317L, 321, 347, 904L
ASTM B381 Gr 1, 2, 3, 5 (6AL - 4V), 7, 9, 11, 12, 23 (6AL -4V ELI)
ASTM B564 / B335 / B649 / B462 / B151 - Hastelloy, Nickel, Monel, Inconel, Incoloy, Alloy 20 & Cupro Nickel
ASTM A182 / UNS S31803 & S32205 (2205)
ASTM A182 / UNS S32750 (2507) & S32760.

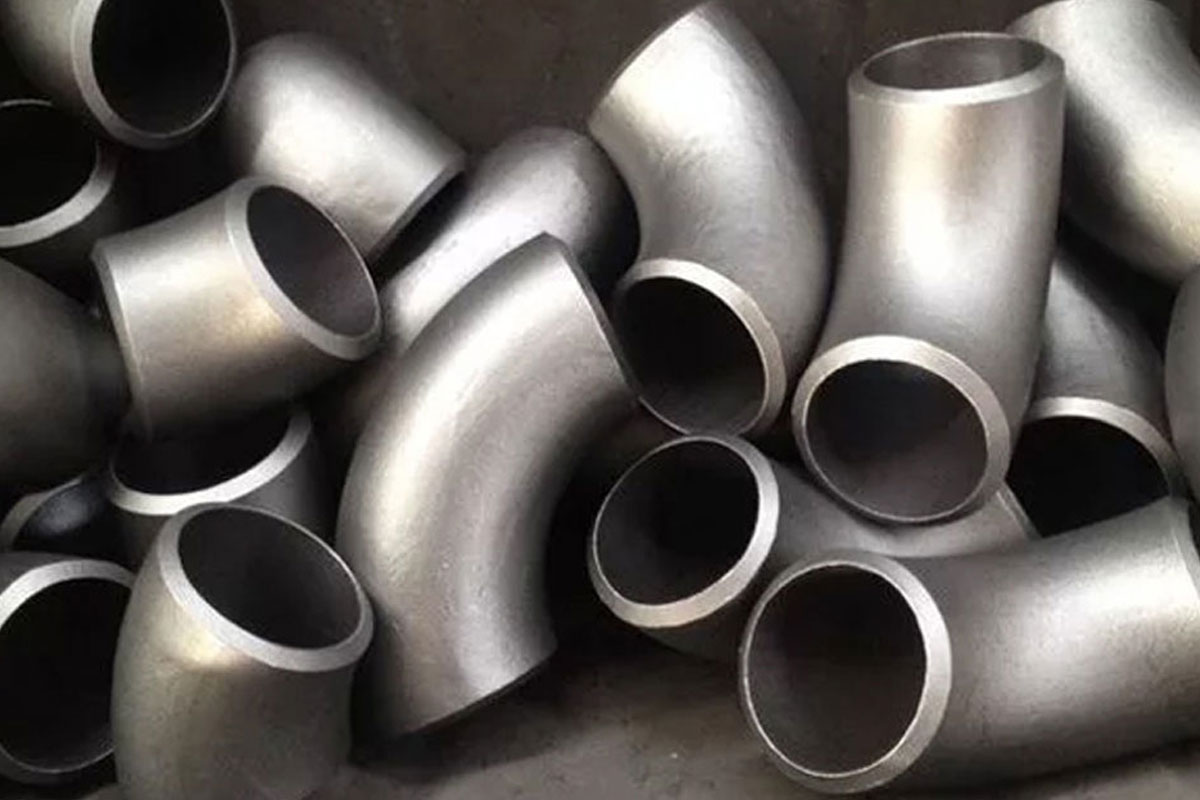

ELBOW
Form
Elbows in long & short radius in 45 deg, 90 deg, 180 deg
Grades offered
Stainless Steel
ASTM, A403, WP304 / 304L / 304H / 316 / 316L / 317 / 317L / 321 / 310 / 347 / 904L
Carbon Steel
ASTM, A234, WPB / A420, WPL3 / A420, WPL6 / MSS-SP-75, WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70
Alloy Steel
ASTM A234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91 ASTM A234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91
Size
1/8″ NB to 48″ NB (Seamless & Welded)
Wall thickness
Sch. 5S to Sch. XXS.

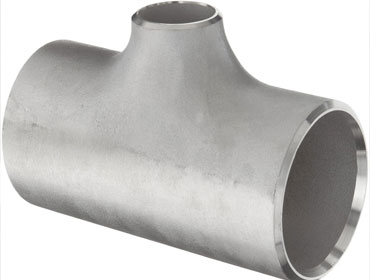

REDUCING TEE
Form
Elbows in long & short radius in 45 deg, 90 deg, 180 deg
Grades offered
Stainless Steel
ASTM A 182, A 240
Carbon Steel
ASTM, A234, WPB / A420, WPL3 / A420, WPL6 / MSS-SP-75, WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70
Alloy Steel
ASTM A234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91 ASTM A234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91
Size
1/8″ NB to 48″ NB (Seamless & Welded)
Wall thickness
Sch. 5S to Sch. XXS.
EQUAL TEE
An equal tee is a T-shaped device with three openings that act as outlets for the pipe. All three ends of the equal tee are the same size. We can provide equal tees in different metals, such as monel, nickel, Inconel, Hastelloy, copper, brass, carbon steel, stainless steel and titanium. Custom equal tees can be developed to meet the specific application requirements of clients.

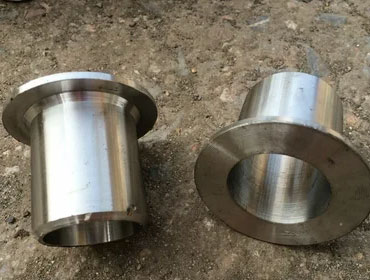

LONG & SHORT STUB END
Size1/8″NB to 48″NB IN
Schedule
SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type
Seamless / ERW / welded / fabricated
Form
Long stub end & short stub end

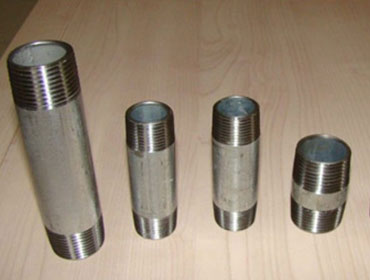

SWAGE NIPPLE & BARREL NIPPLE
We provide Swage Nipples and Barrel Nipples that are specially designed to withstand high temperatures and pressure. These can be used for permanent welded connections or detachable thread connections. Our range is available in various specifications to meet the specific requirements of the applications.
Features
Durable
Corrosion resistance
High tensile strength
Temperature resistance
Superior finish

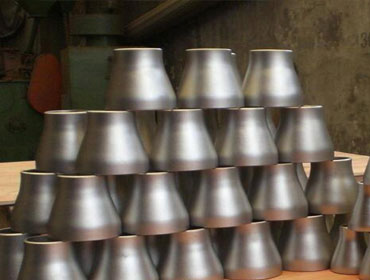

CONCENTRIC & ECCENTRIC REDUCERS
We are offering our clients with concentric / eccentric reducers that are used in petrochemical, power, nuclear and electronic industries. Known for their close tolerances, these stainless steel concentric and eccentric reducers are designed with precise configurations. These reducers are ideal for critical applications that involve high pressure, impulse, vibration and temperature.
